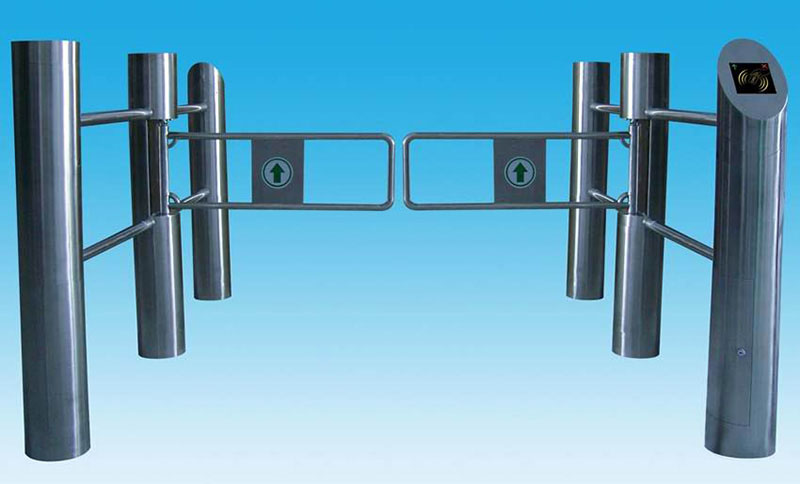

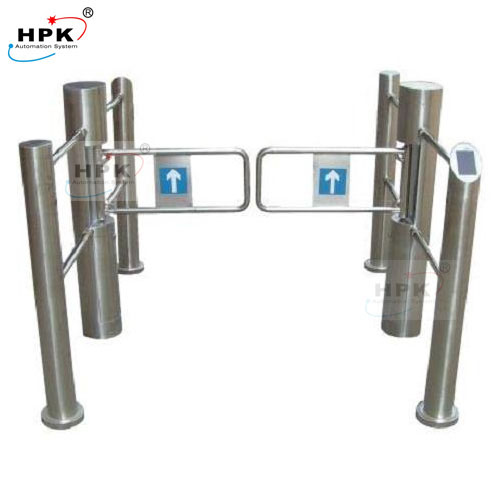

Swing Gate ประตูผลักแบบสวิง รุ่น CA-SW03

Swing Gate ประตูผลักแบบสวิง รุ่น CA-SW03

รายละเอียดสินค้า

Swing Gate

Overall Dimension

1450*200*1100mm

Weight

35kg/pcs

Swing Arm Length

700mm

Housing Material

SUS(304#),thickness is no less than 1.5mm

Working Voltage

AC220V±10%,50HZ±10%

Drive Motor

DC brushed motors(24V)

Passage Width

1500mm

MCBF

3,000,000 cycle

Communication Interface

TCP/IP

Passing Speed

40~50 people/min

Readable Cards

IC/ID card

Operating Time

1s

Protection Grade

IP54

Working Environment

Indoor; Outdoor (with shelter)

Working Temperature

-40°C~60°C

Relative Humility

≤95%, no-condensation



1.Technology Parameters

  • Framework: 2.0 &1.0mm thickness of 304 stainless steel shell
  • Framework size:
  • Main body:260*150*1150 The diameter of the pole:168mm
  • The diameter of added pillar:89mm
  • Lampshades, lights are intalled on the mainbody, which makes the mainbody more
  • beautiful
  • The length of the swing arm: 500mm-830mm
  • Net Weight: 70Kg
  • The largest force the swing arm can surport: 30Kg
  • Swing arm running angle: 90degree
  • Swing direction: Single or bi-direction
  • Working power: AC220 ±10%V/50 ±10%HZ
  • Driving eletricmotor: DC eletricmotor 200w/24v
  • Input interface: dry contact signal or +12V signal or impulse signal of more than 100ms
  • DC12V Driving current: > 10mA
  • Communication interface: RS485 standard Distance less than 1200metres
  • Transit speed: 40 persons/min(open often), 25-30 persons/min(close often)
  • Time for opening or closeing: 2-3seconds
  • Starting time after power is on: 3 secconds
  • Automatic reset time after fault: 10seconds
  • Working environment:
  • Indoor, outdoor(with a tent over)
  • Temperature: 10 degree centigrade below to 50 degree centigrade
  • Relative humidity: ≤90% never coagulated

2.Main function and characteristics

  • With function of self-examine and alarm,it is convenient for maintainance and use.
  • Being able to program operation status by the SET keyboard in the main board.
  • The mechanism is locked until a valid open signal is received.
  • Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through
  • the channel in the pre-set time after the opening. The passing time is adjustable.
  • Unit can be adjusted permanent open or close when power off to meet different needs.
  • The swing barrier gate automatically open when power off and automatically close when power on

3.Main structure and allocation

  • Main body 2
  • Pole 2
  • Baluster 4
  • Controller 2
  • Transformer 2
