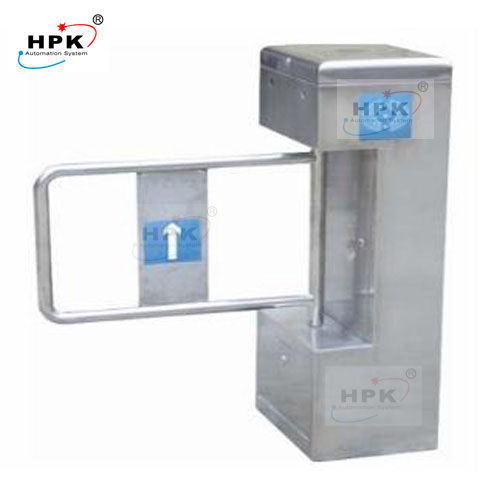

Swing Gate ประตูผลักแบบสวิง รุ่น CA-SW01

Swing Gate ประตูผลักแบบสวิง รุ่น CA-SW01

รายละเอียดสินค้า

1. Stainless steel case, with nice shape and solid structure

2. Water-proof, sun block, high temperature resistance and cold resistance

3. Indicate passage status, and provide directional guide

4. Can program the control status of turnstile, select multiple working modes, and set uni-directional or bi-directional controlling

5. Compatible with reader and writers of IC card, ID card, Magnetic card, bar code card and etc.

6. can setup the moving condition through the built-in small key press on the main controller.

7. Dual Anti-pinch function (mechanism & induction): when the telescopic boom is blocked during its resetting, it will automatically stop in due time, and will reset after the default delay ( until reset successfully), and the strength is small (<_kgs).

8. Anti strike function: when the arm does not get the signals for open, it will lock tightly.

9. It has automatically reset function, when the turnstile open, the passengers should access in certain time, or the system will cancel their authority.

10. it can adjust normal open or normal close to meet different requirements.

11. It can support many kinds of card readers, receive the relay switch signals to work.

12. single/double swing function, can control people entrance/exit in single or double way.

13. It can remote control and manage on computer, automatically reset in delay time.

14. The arm will open when the power is off, will close when the power is on, can meet security requirement.



Functions & Features:

  • Arm length: 500-900mm
  • The strength the arm can bear: 30kg
  • The moving angel: 180 degree
  • Moving direction: bi-directional
  • Working power: AC220 ±10%V/50 ±10%HZ (AC110V available)
  • Driver engine: Driving electric motor: DC motor 30W/24V.
  • Input interface: pulse signal 12V, ≥100ms, driver electronic current ≥10mA
  • Communication interface: RS485
  • Access speed: 40 people per minute (normal open), 25-30 people per minute (normal close).
  • The time of open/close: 2-3s
  • The time of electronic get through to working condition: 3s
  • The resetting time: 10s
  • Working temperature: -15-+75 degree
  • Relative humidity: ≤95%, no drew.
  • Structure: frame construction/ 304 grade stainless steel case (thickness: 1.5mm); water-proof, sun block, high temperature resistance and cold resistance

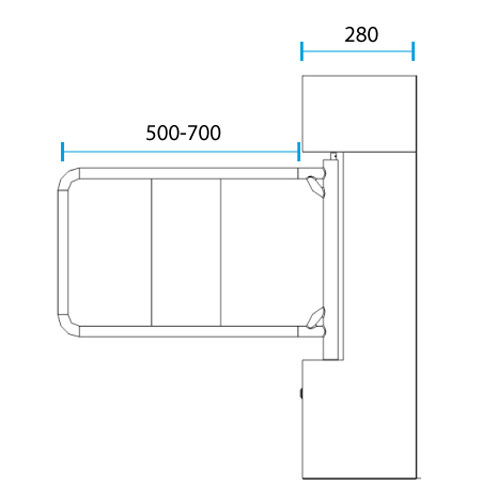

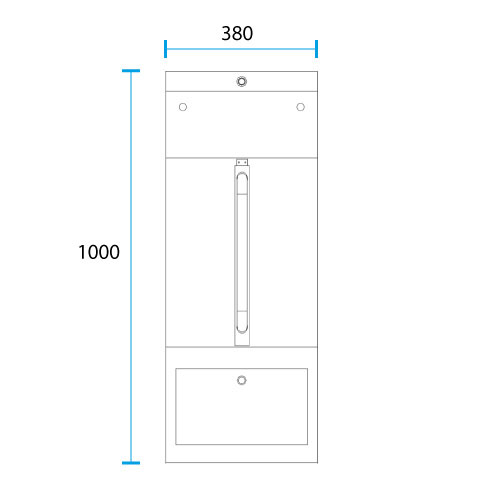

  • Dimension: 350x280x990mm
  • Width of passage: ≤900mm (single piece of turnstile)
  • Passage mode: single-way or double-way
  • Reading mode: compatible with reader and writers of IC card, ID card, Magnetic card, bar code card and etc.
  • Working environment: indoor or out door (under overcast shelf)
